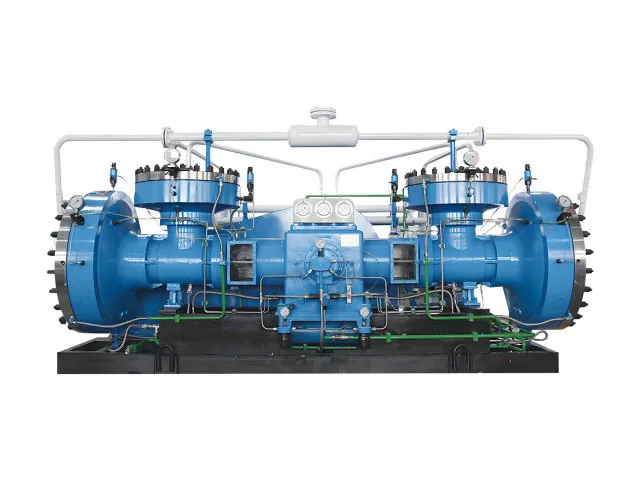

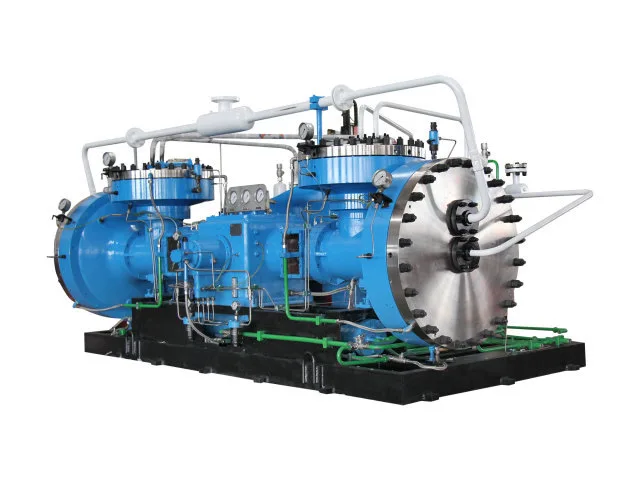

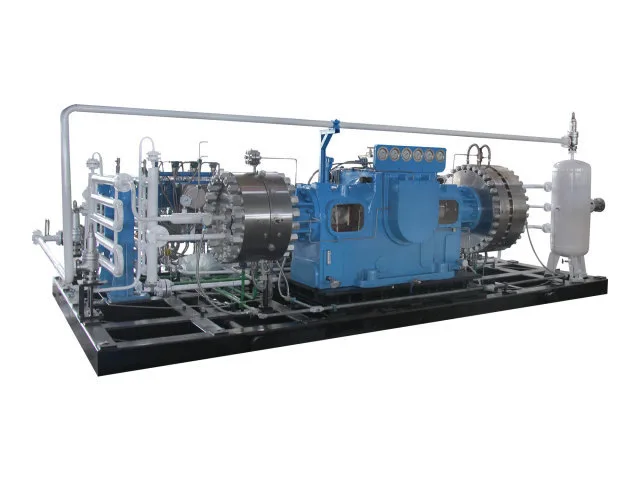

The D Diaphragm Compressor uses a diaphragm to separate the compressed gas from the lubricating and hydraulic drive system. The process gas does not come into direct contact with lubricating oil during compression, helping prevent contamination and supporting gas purity requirements of up to 99.999% under suitable operating conditions. Its reliable sealing and high compression capability make the D Series suitable for gases that are difficult to handle with conventional lubricated compressors.
During the suction stroke, the diaphragm moves outward and increases the volume of the gas chamber, allowing gas to enter through the inlet valve. As the diaphragm moves inward, the chamber volume decreases and the gas is compressed. When the gas reaches the required discharge pressure, the outlet valve opens and the compressed gas is discharged.
Because the diaphragm separates the gas chamber from the hydraulic drive section, the compressed gas remains isolated from the lubricating oil throughout the compression process.
|
Model |
Inlet pressure MPa(G) |
Outlet pressure MPa(G) |
Nominal volumetric flow rate (Nm3/h) |
Power (KW) |
Speed (r/min) |
Dimension L*W*H(mm) |
|
GD-1000/15-220 |
1.5 |
22 |
1000 |
185 |
420 |
6800*3900*2300 |
|
GD-670/12-220 |
1.2 |
22 |
670 |
160 |
420 |
6800*3900*2300 |
|
GD-400/3-220 |
0.3 |
22 |
400 |
185 |
420 |
6500*4200*2500 |
|
GD-2710/9.6-16 |
0.4 |
13.5 |
2710 |
132 |
420 |
5000*3700*2500 |
|
GD-649/5.5-28 |
0.55 |
2.8 |
649 |
75 |
420 |
4500*3000*2000 |
|
GD-350/0.5-3 |
0.2 |
4.5 |
200 |
55 |
420 |
4500*3000*1800 |
|
GD-180/15 |
Atmospheric pressure |
1.5 |
180 |
45 |
420 |
5000*3450*2500 |
|
GD-667/1.25-6 |
0.125 |
0.6 |
667 |
75 |
420 |
4200*3400*2500 |
|
GD-120/0.35-10 |
0.035 |
1.0 |
120 |
37 |
420 |
5070*3210*2500 |
|
GD-313/1-20 |
0.1 |
2.0 |
313 |
75 |
423 |
6800*3200*3700 |
|
GD-150/1.5-19 |
0.15 |
1.9 |
150 |
37 |
420 |
3040*2700*1540 |
|
GD-43/0.5-18.5 |
0.05 |
1.85 |
43 |
18.5 |
420 |
3100*2500*2200 |
|
GD-75/4 |
Atmospheric pressure |
0.4 |
75 |
18.5 |
415 |
3040*2700*1470 |
|
GD-30/160 |
Atmospheric pressure |
16 |
30 |
22 |
410 |
2800*1400*1400 |
|
GD-50/9-150 |
0.9 |
15 |
50 |
15 |
400 |
2500*1300*1300 |
|
GD-10/20 |
Atmospheric pressure |
2.0 |
10 |
7.5 |
410 |
2800*1800*1600 |
|
GD-50/4-60 |
0.4 |
6.0 |
50 |
18.5 |
410 |
2900*1800*1600 |
|
GD-25/30-210 |
3.0 |
21 |
25 |
11 |
500 |
2000*1280*1500 |
|
GD-20/5-150 |
0.5 |
15 |
20 |
11 |
500 |
1600*900*1400 |

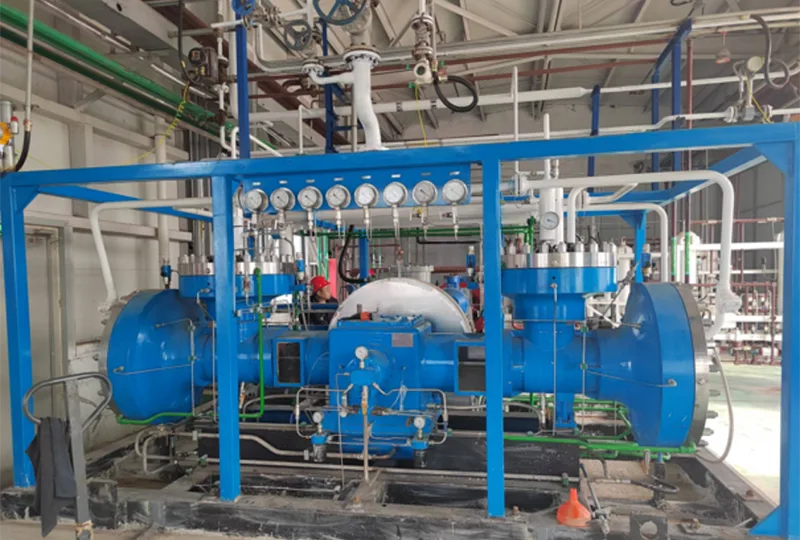

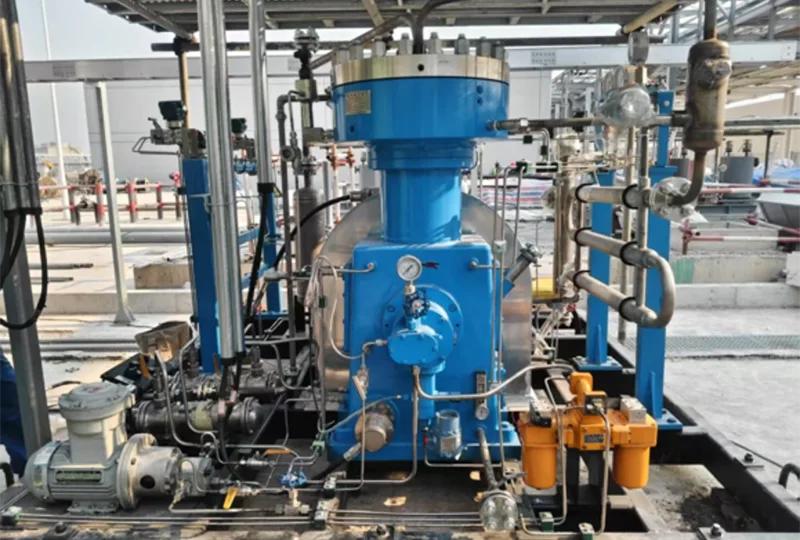

D Diaphragm Compressors are used across industrial gas, hydrogen energy, petrochemical, fine chemical, electronics, food and pharmaceutical production, aerospace, nuclear-related applications and scientific research.
They are commonly selected for gas compression, gas transfer and gas filling duties where oil-free compression, gas purity and reliable sealing are important.
Industrial gas compression requirements vary significantly from project to project. The same flow rate may require a different compressor configuration when the gas medium, pressure ratio or purity requirements change.
Jinding can select and design a suitable D Diaphragm Compressor based on your application. When sending an inquiry, please provide the gas medium, inlet pressure, required outlet pressure and flow rate. Information about gas composition, purity, operating hours, cooling conditions and electrical requirements will also help our engineers recommend a suitable configuration.
Since 1995, Jinding has focused on the research, design and manufacture of industrial compressors and gas equipment. Our production base in Dandong integrates machining, assembly, welding, testing and technical service, supporting the manufacturing and supply of diaphragm compressors for industrial applications.
Jinding provides technical support throughout the project process, from compressor selection and engineering consultation to equipment supply, commissioning, maintenance and spare parts support.
Looking for a D Diaphragm Compressor supplier for your high-purity or specialty gas application?
Send us your gas medium, inlet pressure, outlet pressure and required flow rate. Jinding's technical team can evaluate your operating conditions and recommend a suitable compressor configuration for your project.
