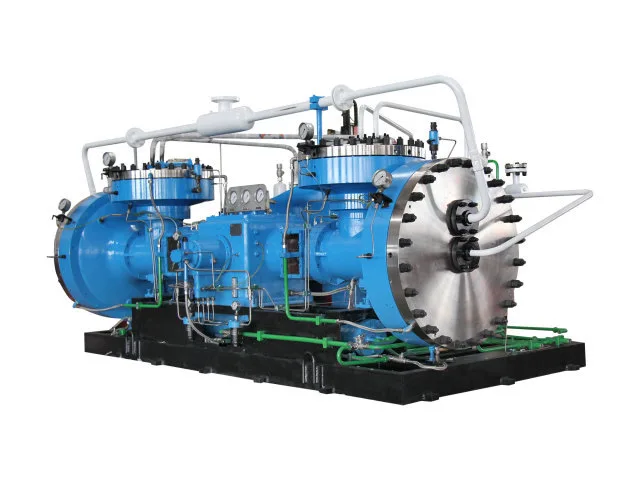

GDS Diaphragm Compressor

Rather than relying on one fixed operating condition, the GDS Diaphragm Compressor s cover different combinations of flow rate, suction pressure and exhaust pressure, from lower-pressure gas transfer to high-pressure compression. Jinding evaluates the compressed medium, required capacity, pressure conditions and project requirements together to help match the GDS configuration to the actual gas system.

Capacity Range for Industrial Gas Applications

Large-scale gas handling applications require compressor capacity to match the demands of the overall process. The GDS series covers a volumetric flow range of 50 Nm³/h to 1000 Nm³/h, supporting industrial gas systems with different throughput requirements.

The range also accommodates different discharge pressure conditions. Selected configurations provide exhaust pressures of up to 34.3 MPa, while other models are designed for higher flow rates at lower or medium discharge pressures. The appropriate model depends on the required combination of gas capacity and operating pressure.

Matching Compressor Specifications to Operating Conditions

Flow rate and discharge pressure must be evaluated together when selecting an industrial diaphragm compressor. Models with different capacities may operate under substantially different pressure conditions, and the required gas medium can also affect material selection, sealing arrangements and the overall configuration.

For model selection, Jinding typically needs the compressed gas medium, required volumetric flow rate, suction pressure, intake temperature and target exhaust pressure, together with any project-specific operating requirements.

For special gases, customers should also provide the gas composition and relevant physical and chemical properties. These details help assess the application and determine a suitable compressor configuration for the specified operating conditions.

Product models and main parameters

Suitable for Industrial Gas Projects

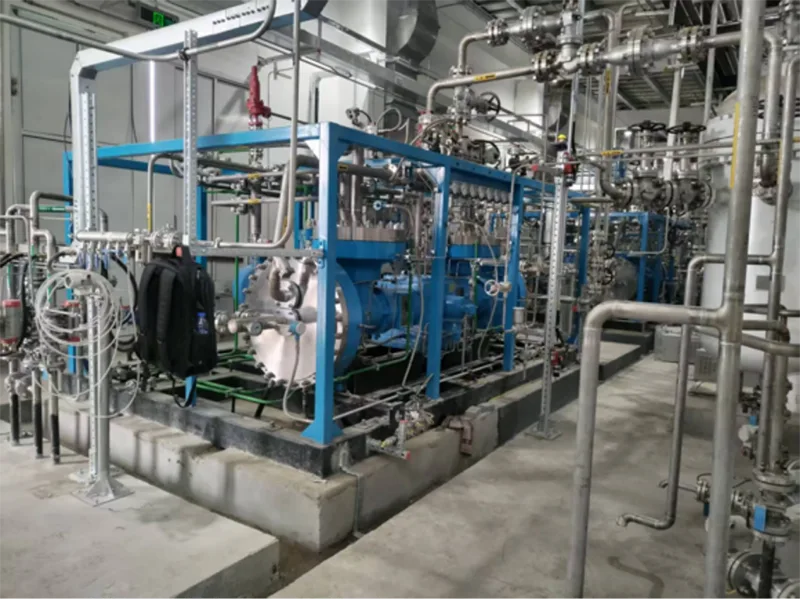

The GDS Diaphragm Compressor is suited to industrial projects where gas compression forms part of a larger process, production system or gas supply arrangement.

Typical applications may involve high-purity gases, inert gases, flammable and explosive gases, toxic gases and other special media.

Depending on the selected configuration and compressed medium, GDS compressors can be considered for industrial gas processing, specialty gas handling, chemical and petrochemical applications, scientific research systems and other project-based gas compression requirements.

Manufacturing and Engineering Capabilities

Jinding Technology has specialized in industrial compressors and acetylene production equipment since 1995. Its Dandong manufacturing base integrates machining, assembly, welding, painting, testing, research and development and customer service.

The company operates more than 100 sets of machining and testing equipment and has dedicated technical personnel supporting equipment manufacturing and engineering projects.

For GDS customers, this manufacturing capability is an important part of the equipment supply process. The compressor is not only selected according to a catalogue model; the actual operating requirements must also be evaluated against the gas system and project conditions.

From Technical Selection to Project Supply

Frequently Asked Questions

What is the maximum flow rate of the GDS Diaphragm Compressor?

The listed GDS models cover volumetric flow rates from 50 Nm³/h up to 1000 Nm³/h, depending on the selected pressure configuration.

What is the highest exhaust pressure available in the listed models?

The highest exhaust pressure shown in the listed GDS models is 34.3 MPa for the GDS134-75/8-350 configuration.

Can the GDS Series compress special gases?

The series can be configured for high-purity gases, inert gases, flammable and explosive gases, toxic gases and other special gases. The actual gas medium and its properties should be provided before final equipment selection.

What information should I provide for compressor selection?

Please provide the compressed medium, required volumetric flow rate, suction pressure, intake temperature, required exhaust pressure and relevant usage requirements. For special gases, gas composition and physical and chemical property information should also be provided.

Can I select a GDS compressor only according to the required flow rate?

No. Flow rate should be evaluated together with suction pressure, exhaust pressure, gas medium and operating conditions. Two projects with the same flow requirement may require different compressor configurations.

Are the listed models fixed configurations?

The listed parameters represent available model and operating configurations. Final technical selection should be confirmed according to the actual application and project requirements.

Can Jinding provide technical support after equipment delivery?

Technical services can include installation and commissioning guidance, operation and maintenance training, remote support, on-site service, equipment inspection, maintenance, repair and spare parts support according to the applicable project and service requirements.
