V Diaphragm Compressor

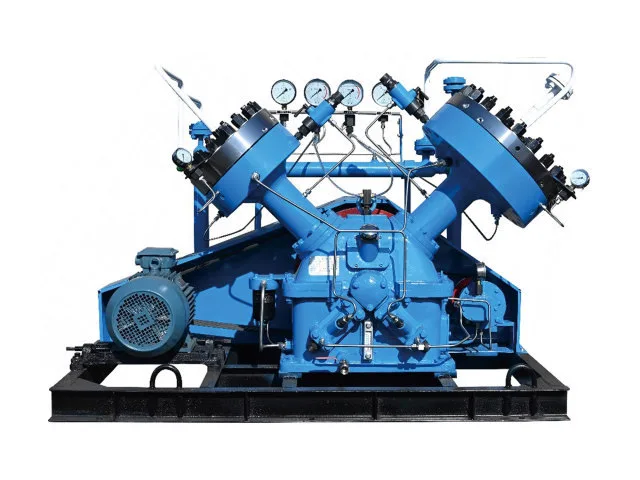

The V Diaphragm Compressor uses a V-shaped structural arrangement combined with diaphragm gas separation technology. During operation, the diaphragm isolates the compressed gas from the lubricated hydraulic system, allowing gas compression to take place inside a sealed chamber without direct contact with lubricating oil. With two-stage compression and a model range covering different pressure and flow requirements, the V series can be applied to high-purity gases, inert gases, flammable and explosive gases, toxic gases, and other special industrial gases.

V-Shaped Structure for a Compact Compression System

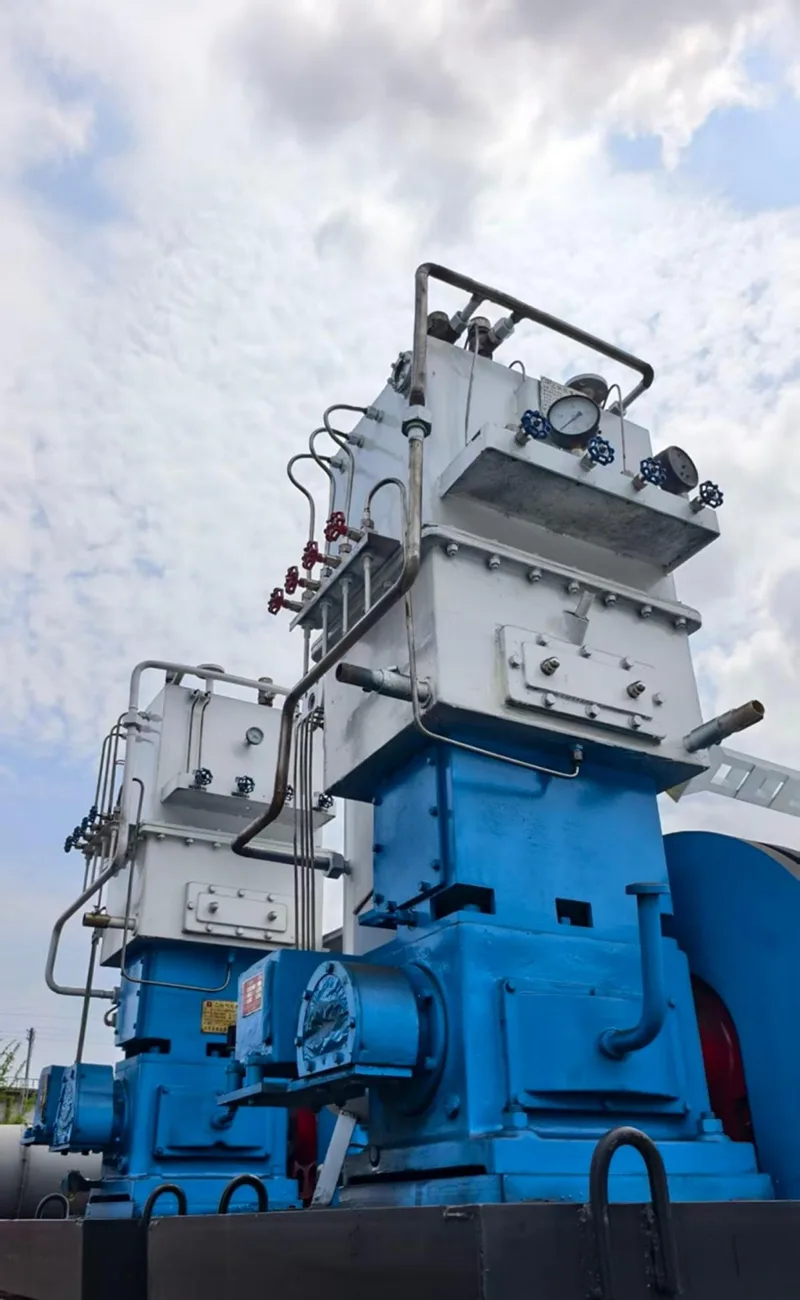

The defining feature of the V Diaphragm Compressor is its V-shaped structural arrangement.

This configuration provides a recognizable mechanical layout for the compressor system while supporting two-stage gas compression. Depending on the selected model, the V series can serve projects ranging from relatively small gas flow requirements to applications requiring significantly higher volumetric capacity.

For buyers comparing diaphragm compressor options, the V series offers a combination of structural compactness and a broad selection of pressure and flow configurations.

Model Range and Main Parameters

From Small Flow to Higher-Capacity Gas Compression

One of the advantages of the V series is the range of available flow capacities.

Smaller models can be considered for applications with relatively low gas consumption or specialized gas handling requirements, while larger configurations extend the available capacity up to 950 Nm³/h based on the listed model range.

This gives industrial buyers more flexibility when selecting a compressor based on actual process demand instead of choosing an oversized or undersized system.

Jinding Manufacturing Support

The V Diaphragm Compressor is supported by Jinding's integrated compressor manufacturing capability.

Established in 1995, Jinding Technology specializes in industrial compressors and acetylene production equipment. Its production base integrates machining, assembly, welding, testing, technical development, and customer service.

With more than 100 sets of machining and testing equipment and an annual production capacity of more than 500 diaphragm compressors, Jinding supports customers from equipment selection through manufacturing, testing, technical service, and long-term maintenance.

FAQ

What gases can the V Diaphragm Compressor handle?

The series can be configured for high-purity gases, inert gases, flammable and explosive gases, toxic gases, and other special gases. The final configuration depends on the specific medium and operating requirements.

What is the highest discharge pressure available in the listed V series?

Selected models in the provided product range can reach 35 MPa(G) discharge pressure.

What flow range does the V series cover?

The listed models range from 5 Nm³/h to 950 Nm³/h, depending on the compressor configuration.

Why is a V-shaped compressor structure used?

The V-shaped arrangement supports a compact mechanical layout and provides a product platform suitable for different industrial compression requirements.

Is the V Diaphragm Compressor suitable for high-pressure gas applications?

Yes. Several models are designed for high-pressure operation, including configurations with discharge pressures of 16 MPa(G), 20 MPa(G), 25 MPa(G), 30 MPa(G), and up to 35 MPa(G).

What information should I send for a quotation?

Please provide the gas medium, inlet pressure, inlet temperature, required outlet pressure, required flow rate, and relevant operating requirements. For special gases, composition and available physical or chemical property information should also be provided.
