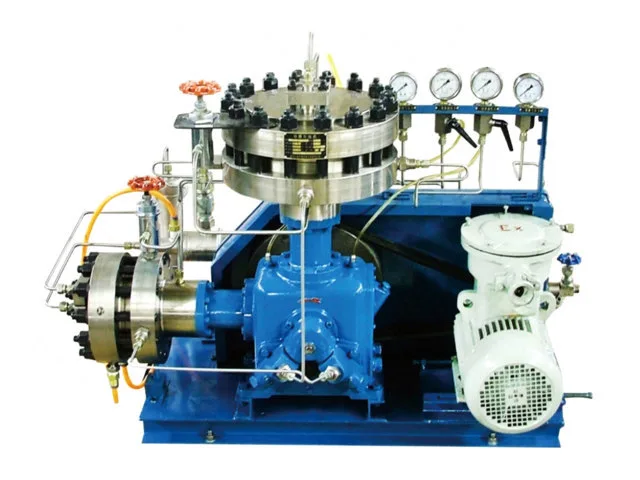

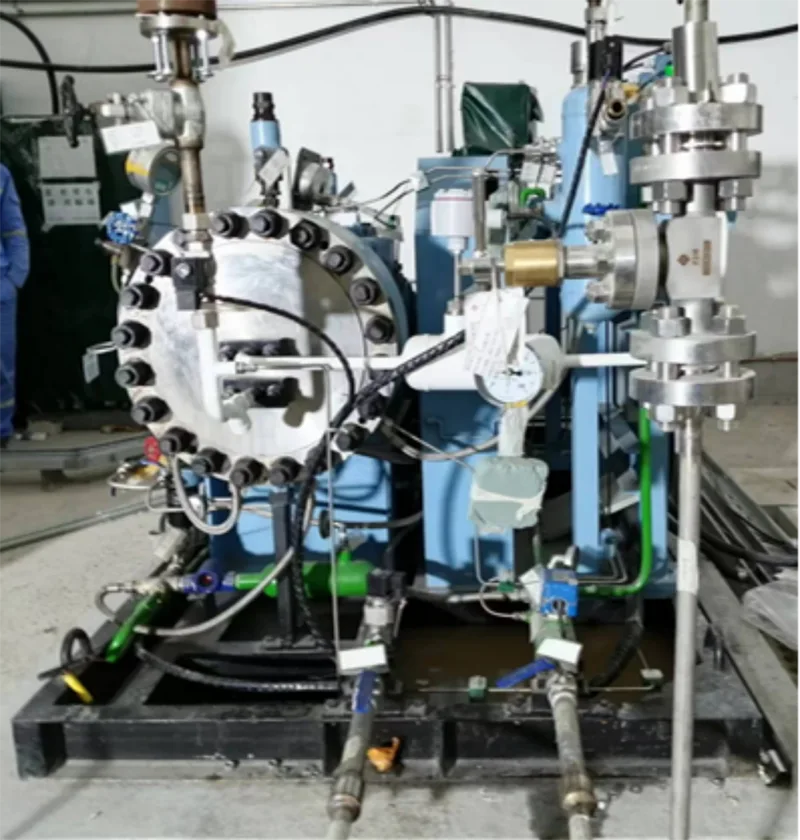

The L Diaphragm Compressor provides multiple configurations for applications with very different operating requirements. From low-flow systems requiring controlled high-pressure compression to larger industrial gas applications with substantially higher throughput, model selection is based on the relationship between inlet conditions, required outlet pressure, flow rate and compressed medium. The series can be configured for high-purity gases, inert gases, flammable and explosive gases, toxic gases and other special gases.

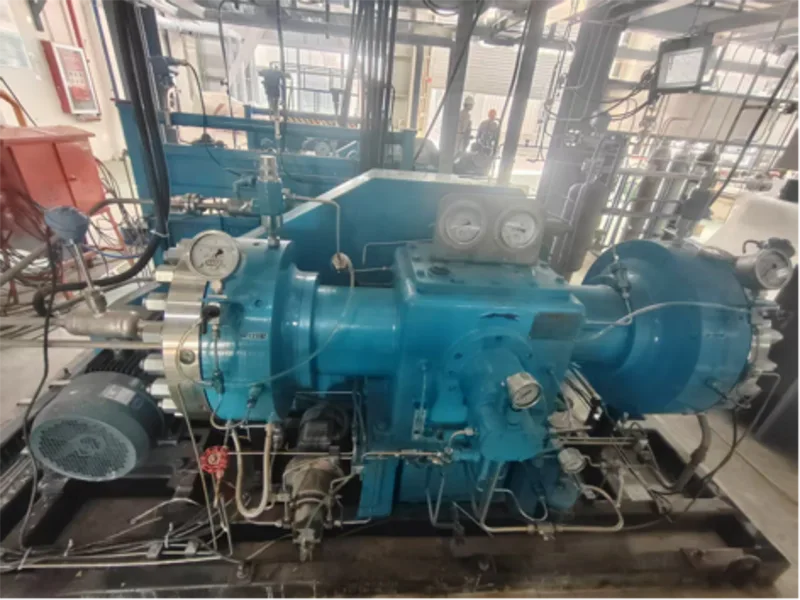

A diaphragm compressor used in a laboratory or research system does not have the same capacity requirements as one installed in an industrial gas production process. The L Diaphragm Compressor covers both ends of this range.
Smaller configurations are available for applications where gas consumption is limited but pressure requirements remain important. Other models provide significantly higher flow rates for larger gas handling systems and industrial processes.
With a nominal volume flow range from 0.3 Nm³/h to 2000 Nm³/h, the L Series allows buyers to select equipment according to the actual scale of their gas system rather than choosing a compressor based on pressure alone.
This broad capacity range makes the series suitable for projects that differ substantially in gas consumption, operating cycle and system size.
|
Model |
Inlet pressure |
Outlet pressure |
Nominal volume flow |
Power |
Speed |
Overall dimensions |
|
GL-100/3-200 |
0.3 |
20 |
100 |
45 |
420 |
4300X2800X2400 |
|
GL-90/3-150 |
0.3 |
15 |
90 |
37 |
420 |
4300X2800X2400 |
|
GL-200/16-200 |
1.6 |
20 |
200 |
55 |
420 |
3690X2390X2700 |
|
GL-2000/30-35 |
3.0 |
3.5 |
2000 |
55 |
400 |
3600X2500X2300 |
|
GL-3/1-150 |
0.1 |
15 |
3 |
3.0 |
400 |
1500X1550X1400 |
|
GL-0.6/5-200 |
0.5 |
20 |
0.6 |
3.0 |
400 |
1500X1550X1400 |
|
GL-1.35/20 |
Atmospheric pressure |
2.0 |
1.35 |
2.2 |
400 |
1600X900X1500 |
|
GL-10/5-150 |
0.5 |
15 |
10 |
2.2 |
400 |
1200X720X850 |
|
GL-0.3/60 |
Atmospheric pressure |
6.0 |
0.3 |
2.2 |
410 |
1200X720X850 |
|
GL-5/15-320 |
1.5 |
32 |
5 |
4 |
410 |
1210X650X833 |
|
GL-330/7-26 |
0.7 |
2.6 |
330 |
45 |
400 |
3600X1600X2200 |
|
GL-0.6/25 |
Atmospheric pressure |
2.5 |
0.6 |
2.2 |
400 |
1250X800X900 |
|
GL-40/200 |
Atmospheric pressure |
20 |
40 |
37 |
400 |
3400X1600X1900 |
|
GL-240/20-200 |
2.0 |
20 |
240 |
55 |
400 |
3400X1900X2200 |
|
GL-300/5-300 |
0.5 |
30 |
300 |
55 |
400 |
3450X1450X2400 |
|
GL-1/30 |
Atmospheric pressure |
3.0 |
1.0 |
2.2 |
400 |
1250X800X900 |
|
Application Scale |
Typical Capacity Requirement |
Suitable Procurement Scenario |
|
Low-Flow Systems |
Approximately 0.3–10 Nm³/h |
Laboratory systems, research projects, specialty gas testing and small-volume gas handling |
|
Medium-Capacity Systems |
Approximately 40–330 Nm³/h |
Specialty gas supply, pilot systems, process gas handling and medium-scale industrial applications |
|
Higher-Throughput Systems |
Up to 2000 Nm³/h |
Industrial gas systems, production processes and larger engineering projects |
The actual model should always be selected according to the complete operating condition. Flow rate is only one part of compressor selection and must be evaluated together with the gas medium and pressure requirements.
The wide range of available L Series models allows the same product family to support gas systems with very different operating conditions.
The right configuration depends on how these factors work together:
Compressed medium → Inlet condition → Required flow → Required outlet pressure → Actual usage requirement
This selection process helps ensure that the compressor is matched to the gas system rather than simply selected from the closest standard capacity.
The L Diaphragm Compressor is supported by Jinding's manufacturing and engineering capability in industrial gas compression equipment.
Liaoning Jinding Technology Development Co., Ltd. has specialized in industrial compressors and acetylene production equipment since 1995. Its manufacturing base integrates machining, assembly, welding, painting, testing, research and development and customer service.
With dedicated manufacturing and testing equipment, technical personnel and experience across industrial gas and engineering applications, Jinding provides support beyond standard equipment supply.
The listed L Series models cover nominal volume flow rates from 0.3 Nm³/h to 2000 Nm³/h.
The highest outlet pressure shown in the listed models is 32 MPa, depending on the selected compressor configuration.
Yes. The available models include very low-flow configurations for smaller systems as well as models with capacities up to 2000 Nm³/h for higher-throughput applications.
The series can be configured for high-purity gases, inert gases, flammable and explosive gases, toxic gases and other special gases, subject to technical evaluation of the actual medium and operating conditions.
The model should be selected according to the compressed medium, intake pressure, intake temperature, required outlet pressure, volumetric flow rate and specific usage requirements.
For special media, customers should provide the gas composition and relevant physical and chemical property data for technical evaluation.
Yes. Technical support can include equipment selection, engineering consultation, installation and commissioning guidance, training, remote support, on-site service, maintenance, repair and spare parts supply according to project requirements.
Send Jinding your compressed medium, intake pressure, intake temperature, required outlet pressure and required flow rate. For special gases, please also provide the gas composition and relevant physical and chemical properties so the appropriate L Diaphragm Compressor configuration can be evaluated.
