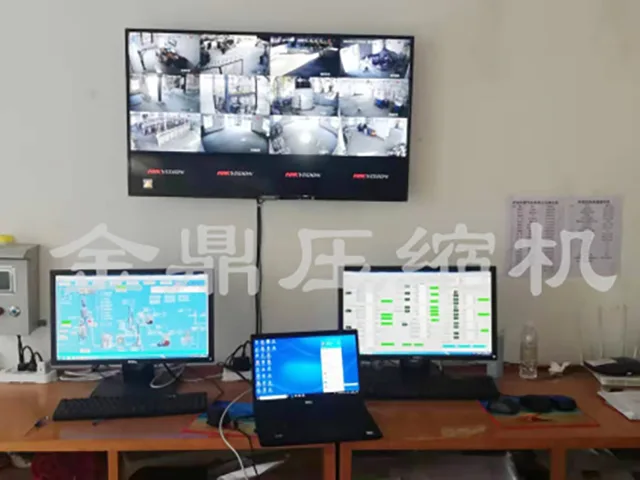

The Acetylene Automatic Safety Monitoring System provides centralized supervision for equipment and safety conditions throughout an acetylene production process. Depending on the plant configuration, monitoring functions can cover auxiliary equipment such as water seals, purifiers and high-pressure dryers, together with other relevant process units. The PLC system processes real-time operating information, handles configured alarm and control functions, and records monitoring data. Operators can view the production process and operate available functions through an LCD touch screen, with the interface presented as a 3D process flowchart. The overall monitoring scope and degree of automation are determined according to the customer's equipment and control requirements.
The system monitors selected operating conditions and safety-related statuses of equipment used in acetylene production. Depending on the process configuration, the monitoring scope may include:
Selected equipment signals and operating information are integrated into a central PLC platform, allowing operators to review relevant conditions across the production line from one control interface.
The PLC system supports real-time monitoring, alarm management and the automatic control functions specified for the project. When a monitored parameter or equipment status reaches a configured alarm condition, the system can notify the operator. Where automatic control or interlocking functions are included, the PLC can execute the corresponding actions according to the approved control logic.
The monitoring points, alarm thresholds and interlock responses are determined by the customer's process design, equipment configuration and applicable safety requirements. They should not be assumed to be identical for every acetylene plant.
The operator interface features an LCD touch screen with a 3D process-flow display. It presents the production process and connected equipment visually, helping operators review monitoring information and access the functions provided by the control configuration without relying solely on separate numerical readings or individual equipment screens.
The PLC system can also automatically record configured monitoring data and alarm events. Authorized personnel can access the stored information to review equipment operating conditions and investigate abnormal events, providing historical references beyond manual notes or operator memory.
The available display functions, recorded data and record-retention arrangements depend on the system configuration.
Jinding configures the monitoring scope and automation level according to the customer's process arrangement, auxiliary equipment and operating requirements. The system is not restricted to a single fixed configuration.
Customization may involve the following areas:
|
Configuration Area |
Customer-Specific Consideration |
|
Monitoring scope |
Which equipment and process conditions need to be monitored |
|
Alarm functions |
Which abnormal conditions require operator notification |
|
Automatic control |
Which functions require automatic operation |
|
Interlocking |
Which equipment or process conditions require linked control actions |
|
Operator interface |
Information and functions presented through the LCD touch screen |
|
Data recording |
Monitoring and alarm information to be automatically stored |
The system is relevant to customers who need centralized monitoring and automation for an acetylene production line, including:
· Acetylene production plants requiring centralized safety supervision
· Industrial gas manufacturers operating acetylene-related production equipment
· New plant projects where monitoring and automatic control are being incorporated into the process design
· Existing plants undergoing automation upgrades
· Facilities with multiple auxiliary units that need to be monitored from a common control platform
· Customers requiring customized PLC monitoring and interlocking functions
For procurement, the most useful information is the existing or planned process flow, equipment list, required monitoring points, alarm requirements and desired level of automatic control.
It monitors relevant equipment and safety conditions in the acetylene production process. Depending on the project, this can include water seals, purifiers, high-pressure dryers and other auxiliary equipment.
The configured monitoring signals are handled through the PLC control system. Operating information can be displayed to operators in real time, while configured alarm and control functions are managed through the same system.
Yes, where automatic control or interlocking functions are included in the project configuration. The specific response depends on the customer's process requirements and agreed control logic.
The system uses an LCD touch screen with a 3D process-flow interface. Operators can view the production process, check monitored conditions and access the control functions incorporated into the system.
Yes. Monitoring and alarm data can be automatically recorded and accessed later for review.
No. The monitoring scope and degree of automation can be customized according to the customer's equipment, process arrangement and control requirements.
They can be included when their monitoring and control functions are part of the project requirements. The final scope depends on the equipment configuration and available monitoring signals.
Customers should provide the acetylene process flow, equipment list, required monitoring points, alarm requirements, automatic control or interlocking requirements, and information about any existing control system for retrofit projects.
