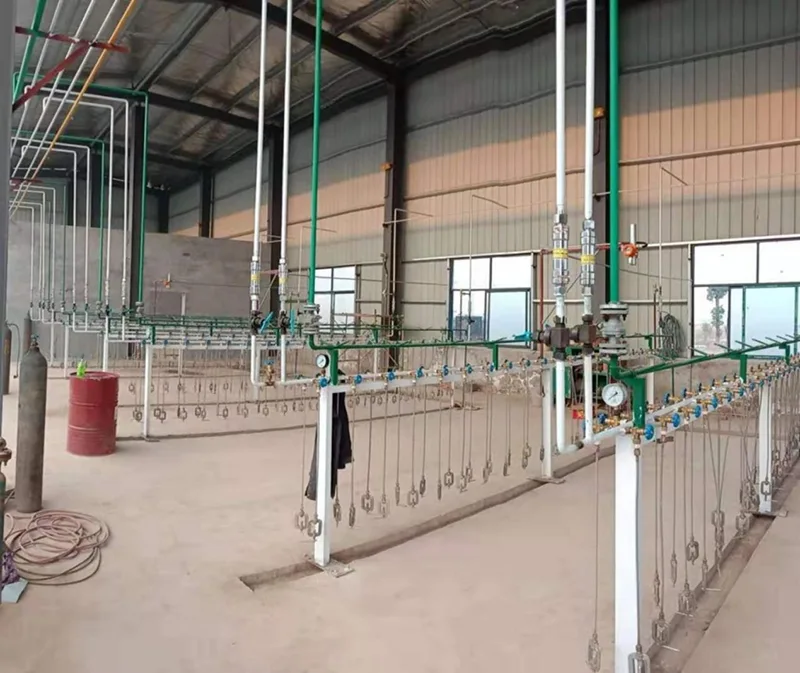

An acetylene filling arrangement is not a single machine. It is a process section that connects the acetylene source with the cylinders prepared for filling.
Depending on the plant configuration, acetylene may first pass through upstream generation, purification, drying, storage, or compression equipment before entering the filling section. The filling arrangement then distributes and controls the gas so that cylinders can be filled under the required operating conditions.
The system can include gas pipelines, filling manifolds, cylinder connection points, pressure monitoring instruments, control valves, safety devices, and related automation equipment. Equipment selection depends on the capacity of the filling station and the requirements of the complete acetylene production process.
Instead of treating cylinder filling as an isolated operation, Jinding can configure the filling section as part of the overall acetylene production and gas handling system.

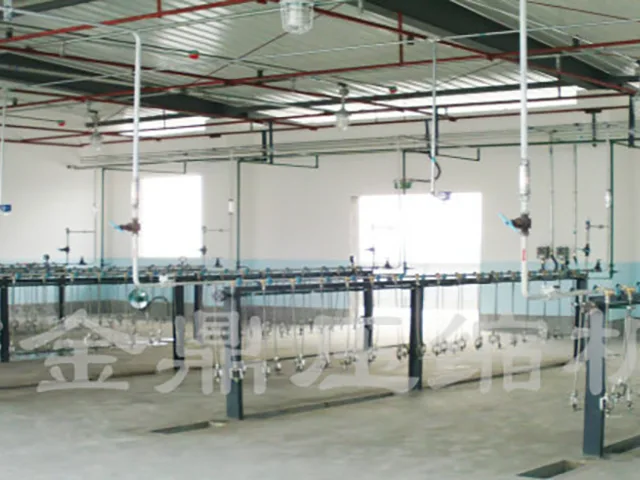

Gas from the upstream acetylene system is delivered to the filling section through the required pipeline arrangement. The manifold system distributes the gas to individual filling positions or groups of cylinders.
This makes it easier to organize multiple filling points within the same operating area.
Pressure control and monitoring equipment are incorporated into the filling process according to the system design. Operators can monitor the operating condition of the filling line and make adjustments according to the established filling procedure.
The actual filling arrangement can be designed around the required number of cylinders, filling capacity, and site workflow.
The filling section can be connected with other equipment in the acetylene production line, including generators, purification systems, dryers, gas holders, compressors, and safety monitoring systems.
This allows the filling arrangement to become part of the overall gas process rather than operating as a separate piece of equipment.
Jinding evaluates the following operating and site requirements when planning an acetylene cylinder filling system:
The acetylene filling system should incorporate safety measures appropriate to its design and operating conditions. Depending on the project, these may include pipeline isolation devices, pressure monitoring, safety valves, flame arresters and other specified protective components.
Where required, monitoring and control functions can be coordinated with the plant PLC system. Equipment status, operating parameters and alarm signals can be integrated into the overall plant monitoring arrangement to support operational oversight.
The final safety design must account for system capacity, equipment layout, operating conditions, applicable codes and project-specific requirements. Protective devices and control logic should be selected and validated as part of the engineering design.
For new installations, the filling system can be planned alongside upstream acetylene generation and gas processing equipment. Coordinating production capacity, purification, drying, compression, storage and cylinder filling helps establish a compatible process layout and operating sequence.
When production demand increases, existing facilities may need additional filling positions or greater filling throughput. The available acetylene supply, compressor capacity, pipeline arrangement and existing equipment condition should be assessed before defining the expansion plan.
For plants upgrading older filling equipment, the assessment can cover filling pipelines, control systems, safety devices and monitoring functions. The replacement arrangement should be checked against existing process interfaces, required production capacity and current safety requirements to support integration with the operating facility.
No. It is generally a combination of equipment and process components used to organize acetylene delivery and cylinder filling. The actual configuration depends on the capacity and requirements of the project.
Yes. The filling arrangement can be considered together with the existing acetylene supply, purification, drying, storage, compression, and monitoring equipment. The compatibility of the existing system should be evaluated before final configuration.
The number of filling positions is not fixed. It can be determined according to the required production capacity, site layout, gas supply capacity, and operating procedure.
Automation and monitoring functions can be incorporated according to project requirements. The level of automation can range from basic instrument monitoring to PLC-based control and alarm functions.
The specific safety configuration depends on the project. Equipment such as pressure monitoring devices, shut-off valves, safety valves, flame arresters, and related protection components can be incorporated where required.
To prepare a suitable filling arrangement, buyers should provide the required acetylene capacity, number of filling positions, cylinder specifications, available acetylene supply conditions, upstream pressure, required filling conditions, installation space, and any existing equipment that will be connected to the new system.
Jinding manufactures industrial compressors and acetylene production equipment. Depending on the project scope, equipment selection and technical support can cover acetylene generation, purification, drying, compression, storage, filling, monitoring, and related engineering services.
