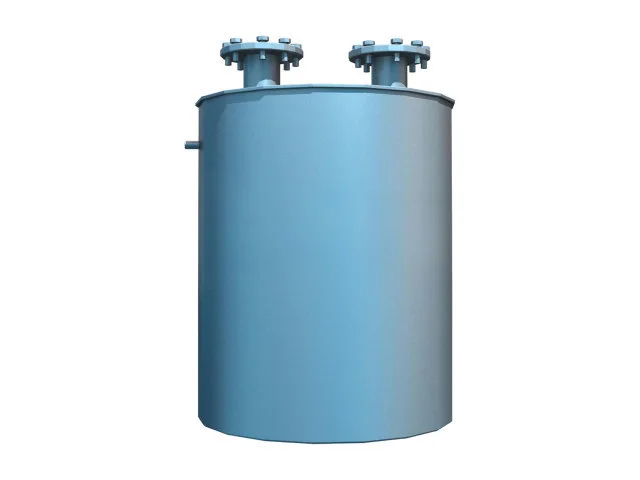

The Forward and Reverse Water Seal Arrangement is used as part of the pipeline safety system. Safety water seals are installed at selected positions between different process sections to provide separation and protection.
Under normal operating conditions, acetylene follows the designed gas flow route. When abnormal conditions occur, the water seal provides an additional barrier between connected sections. This arrangement can help limit the influence of an incident on adjacent equipment and contributes to the overall safety design of the acetylene system.
Acetylene production and processing systems may include both low-pressure and higher-pressure equipment. A safety water seal can be installed between different pressure sections to provide additional process separation. If an abnormal condition occurs on one side of the pipeline, the purpose of the arrangement is to reduce the possibility of that condition directly affecting equipment on the other side.
The acetylene process connects multiple pieces of equipment through pipelines. Water seals introduce additional protection points within this route. Instead of relying only on the connected equipment itself, the pipeline system includes an intermediate safety barrier between selected process sections.
In the event of an accident involving equipment or pipelines located behind a safety water seal, the arrangement can provide a certain isolation and flame-retarding effect.
The Forward and Reverse Water Seal Arrangement works together with other safety components used in an acetylene plant. Depending on the process design, these may include pressure monitoring instruments, shut-off valves, flame arresters, safety valves, automatic monitoring equipment, and other protection devices.
A continuous acetylene pipeline connects different stages of the production process. Although each machine performs a separate function, gas movement creates a physical connection between the generator, storage equipment, purification system, drying equipment, compressor, and filling section. This is why pipeline protection deserves the same attention as the main process equipment.
The importance of a Forward and Reverse Water Seal Arrangement can be understood in several ways:
· It introduces additional separation between connected equipment.
· It helps isolate different pressure sections.
· It adds a protective point within the acetylene pipeline.
· It can help reduce the influence of abnormal conditions on adjacent process equipment.
· It supports the safety design of the complete acetylene production and handling system.
1. Acetylene Generator → 2. High-Level Water Tank → 3. Safety Water Seal → 4. Gas Holder → 5. Safety Water Seal → 6. Purification Tower 1 → 7. Purification Tower 2 → 8. Neutralization Tower → 9. Low-Pressure Dryer → 10. Acetylene Compressor → 11. Oil-Water Separator → 12. Molecular Sieve Dryer → 13. Acetylene Filling System
After acetylene is generated, the gas moves through the upstream equipment and passes through a safety water seal before entering the gas holder. Another safety water seal is positioned before the gas enters the downstream purification process.
From there, the acetylene continues through purification, neutralization, low-pressure drying, compression, separation, molecular sieve drying, and finally the filling system.
Jinding can coordinate equipment preparation and delivery according to the scope of the project.
Jinding's manufacturing base in Dandong supports the production and supply of industrial compressors and acetylene equipment, allowing related equipment to be coordinated within a broader project supply arrangement.
Planning a new acetylene production line or upgrading an existing station?
Send Jinding your process flow, production requirements, and available site information to discuss a suitable Forward and Reverse Water Seal Arrangement.
Jinding can provide technical consultation and equipment support for acetylene generation, purification, drying, compression, storage, filling, safety monitoring, and related industrial gas projects.
