Acetylene compression equipment is selected according to gas displacement, inlet pressure, required discharge pressure and downstream process conditions. These factors help determine whether an acetylene piston compressor or another reciprocating gas compressor configuration is suitable for the application.
In an acetylene production line, the compressor connects upstream gas preparation with downstream processing or delivery.
After generation and the required gas treatment stages, acetylene may need to be transferred to storage, drying, cylinder filling or other process equipment. If the available inlet pressure is insufficient for the next stage, compression raises the gas pressure to the level required by the system.
Equipment selection therefore begins with the compressor's position in the process. Key details include the gas source, required flow rate, inlet conditions and target discharge pressure.
Gas displacement is a primary sizing parameter and may be specified in m³/min. The required capacity should match the process demand and expected operating conditions.
Discharge pressure is another critical parameter. It should be determined by the requirements of the downstream equipment and the overall process, rather than considered in isolation.
Inlet pressure, gas conditions, operating schedule and piping connections also affect equipment configuration. These parameters should be reviewed together to identify a suitable compressor specification.

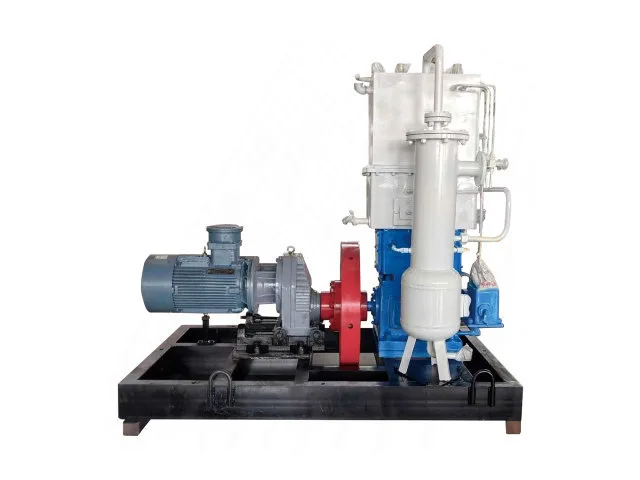

A reciprocating piston compressor compresses gas through the repeated movement of a piston inside a cylinder. During the suction stroke, gas enters the compression chamber through the inlet valve. As the piston moves through the compression stroke, the chamber volume decreases and the gas pressure increases. Once the discharge conditions are reached, the compressed gas exits through the discharge valve.
This cycle repeats during operation. The required displacement, pressure rating and compression-stage arrangement depend on the process conditions and the performance requirements of the acetylene system.
|
Model |
Medium |
Displacement |
Exhaust Pressure |
Overall dimensions |
Weight |
Actuator |
|
|
Power |
Voltage |
||||||
|
2Z-(0.34-0.67)/25 |
Acetylene |
0.34-0.67 |
2.5 |
1700x800x1400 |
1.1 |
11 |
380 |
|
2Z-0.67/25 |
Acetylene |
0.67 |
2.5 |
1900x900x2000 |
2.2 |
11 |
380 |
|
2Z-0.8/25 |
Acetylene |
0.8 |
2.5 |
1900x900x2000 |
2.2 |
11 |
380 |
|
2Z-(0.5-0.8)/25 |
Acetylene |
0.5-0.8 |
2.5 |
1900x900x2000 |
2.2 |
15 |
380 |
|
2Z-1.33/25 |
Acetylene |
1.33 |
2.5 |
2035x1240x2260 |
3 |
18.5 |
380 |
|
2Z-1.67/25 |
Acetylene |
1.67 |
2.5 |
2035x1240x2260 |
3 |
22 |
380 |
|
2Z-(0.67-1.5)/25 |
Acetylene |
0.67-1.5 |
2.5 |
2035x1240x2260 |
3 |
22 |
380 |
|
2Z-(0.835-1.67)/25 |
Acetylene |
0.835-1.67 |
2.5 |
2035x1240x2260 |
3 |
22 |
380 |

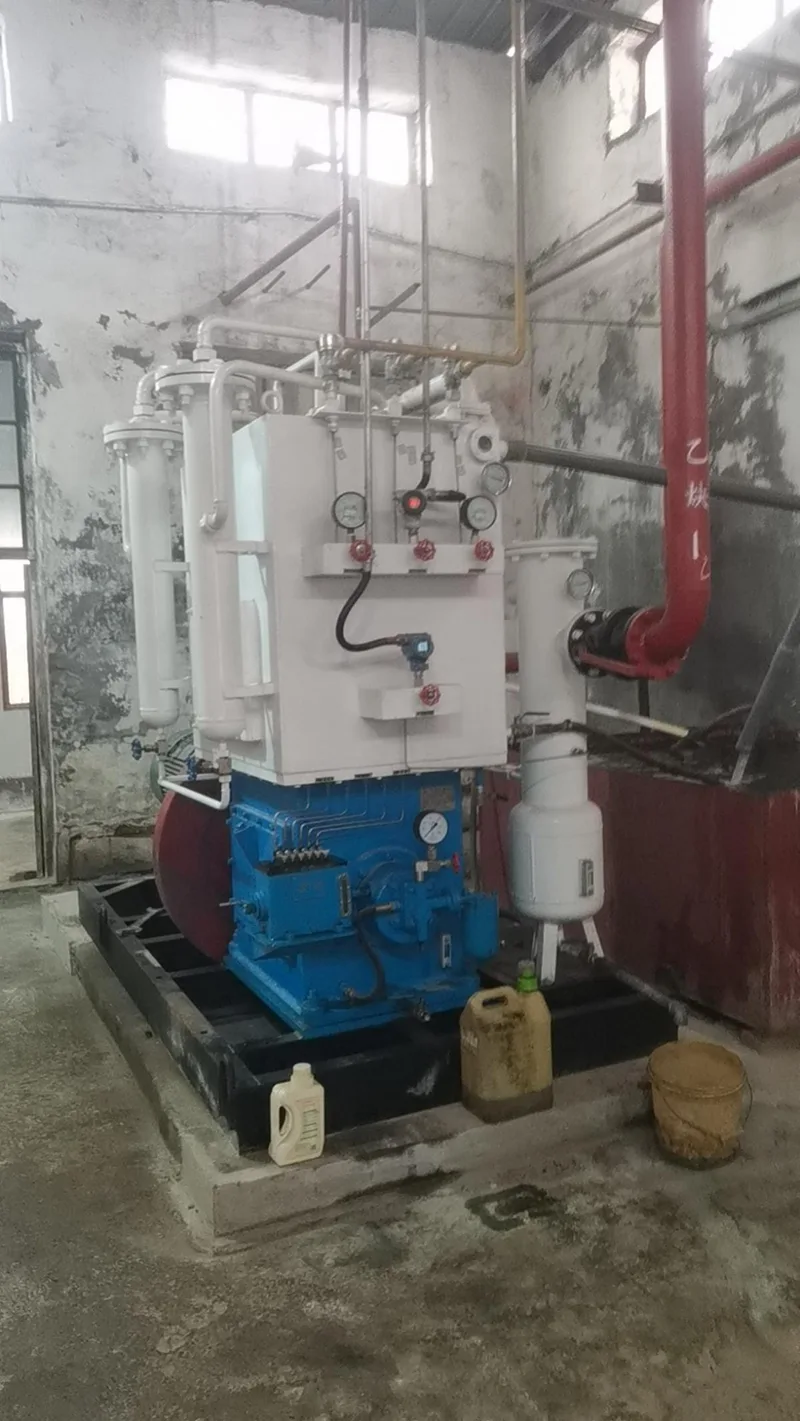

After acetylene has passed through the required production and treatment stages, compression equipment is used when the gas needs to be delivered to a higher-pressure downstream process.
For gas filling projects, a stable compression stage is an important part of moving processed acetylene into the subsequent filling system.
The compressor can be incorporated into industrial gas systems where acetylene must be transferred between process sections under controlled pressure conditions.
Projects using acetylene as an industrial feed gas may require dedicated compression equipment as part of their gas handling process.
For customers purchasing complete acetylene production equipment, the piston compressor can be considered together with generators, purification equipment, dryers, safety monitoring systems and other auxiliary equipment.
Jinding is a China-based manufacturer of industrial compressors and acetylene production equipment. Established in 1995, Liaoning Jinding Technology Development Co., Ltd. develops and manufactures diaphragm compressors, piston compressors, liquid-driven compressors and acetylene production equipment.
The company's product range allows customers working on acetylene projects to source different types of process equipment from a manufacturer familiar with both gas compression and acetylene production systems.
Jinding's technical scope includes equipment selection, engineering support, manufacturing, equipment supply, installation and commissioning assistance, maintenance support and spare parts service according to project requirements.
For acetylene projects involving multiple pieces of equipment, this can simplify communication between the gas generation and compression sections.
Yes. The listed product range is designed for acetylene gas compression applications and is intended for use within acetylene production, processing, supply and related industrial gas systems.
The models listed on this page have an exhaust pressure of 2.5 MPa(G).
The listed models cover displacement capacities from 0.34 m³/min to 1.67 m³/min, including several intermediate configurations.
The model should be selected according to the actual acetylene flow requirement, inlet condition, discharge pressure, upstream gas production capacity and downstream process demand.
Yes. Jinding manufactures acetylene production equipment and related gas compression equipment. Depending on project requirements, the compressor can be considered together with acetylene generators, purification systems, dryers, monitoring equipment and other auxiliary equipment.
The models in the current parameter range are listed with 380 V electrical supply.
Yes. Overall dimensions and equipment weight vary by model. Foundation space, maintenance access, lifting conditions and piping layout should be considered before the final equipment selection.
The recommended information includes required gas capacity, inlet conditions, required discharge pressure, operating requirements, power supply and any special project conditions. This allows Jinding to evaluate the application and recommend a suitable configuration.
